Understanding Toggle Switche: A Comprehensive Guide

Toggle switches might seem like simple components at first glance, but they play an indispensable role in countless electrical and electronic systems. From household devices to industrial machinery, toggle switches provide an intuitive and reliable means of controlling circuits.

TL;DR

Toggle switches are fundamental electrical components used to open or close circuits, typically operated by flipping a lever or handle. They come in various types like SPST, DPDT, and momentary, each suited for specific applications. Understanding their functionality, uses, and installation can help in choosing the right switch for your needs. Their mechanical simplicity and versatility make them ideal for everything from DIY electronics to heavy industrial controls.

What Is a Toggle Switch?

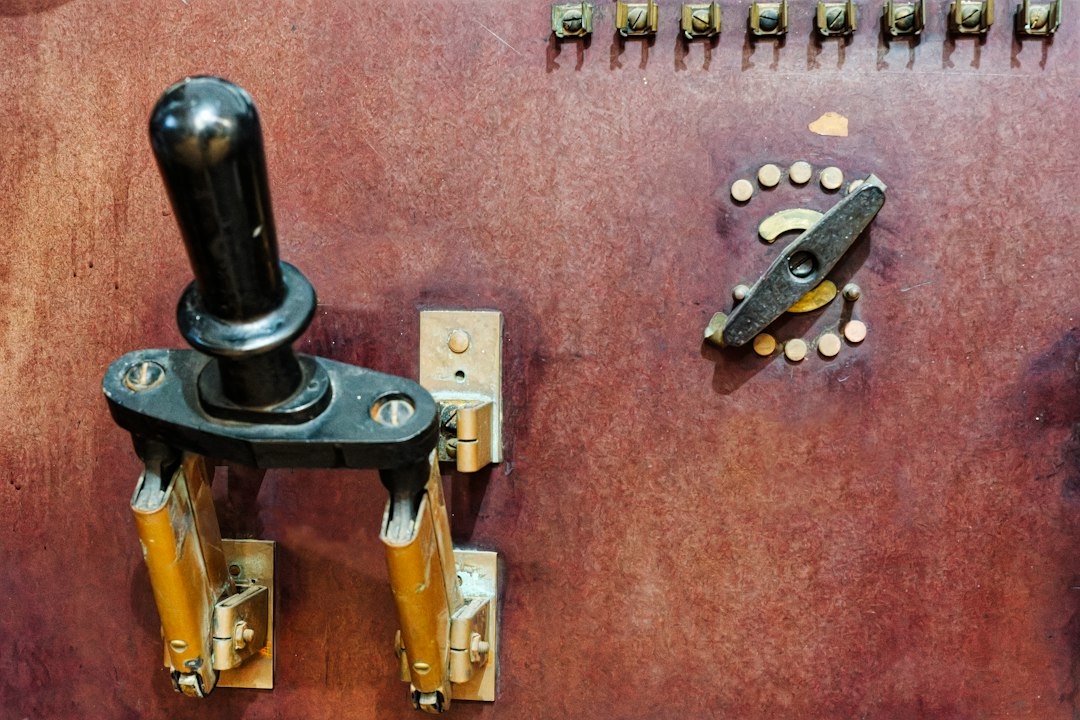

A toggle switch is a mechanical switch that controls the flow of electricity in a circuit. It does this by pivoting a lever back and forth to open or close the electrical connection. These switches are popular due to their ease of use, durability, and clear tactile feedback.

Toggle switches come in many configurations, depending on what you need them to do—turning something on and off, switching between multiple circuits, or temporarily activating a function.

Key Components of a Toggle Switch

• Actuator (Lever/Handle): The part you flip to change the switch’s position.
• Contacts: The internal metal pieces that connect or disconnect to control current flow.
• Terminals: The points where wires are connected to the switch.
• Housing: The outer body that encases the other components.

Types of Toggle Switches

Toggle switches are categorized by their internal configuration and how many circuits they control. Knowing these types helps in selecting the right switch for a specific function.

1. SPST (Single Pole Single Throw)

This is the simplest type of toggle switch. It connects or disconnects one circuit — effectively turns something *on* or *off.*

2. SPDT (Single Pole Double Throw)

This type can connect one input circuit to one of two outputs. It’s commonly used to toggle between two different circuits.

3. DPST (Double Pole Single Throw)

Controls two separate circuits at the same time with a single switch movement. Ideal when you need to control dual circuits together.

4. DPDT (Double Pole Double Throw)

Acts like two SPDT switches mechanically linked together. Often used for reversing polarity or motor direction.

5. Momentary Toggle Switches

These return to their default position when released, meaning they only stay active while pressed or flipped. Common applications include reset buttons or starter motors.

Applications of Toggle Switches

Toggle switches are everywhere you look. Their versatility allows them to be used in numerous applications across industries:

• Consumer electronics – To power on/off devices, change modes, or adjust settings.
• Automotive – Light controls, ignition systems, and accessories in vehicles.
• Industrial machinery – To initiate, control, or stop equipment in a factory setting.
• Aviation and marine – For controlling lights, navigation systems, or communications.
• DIY projects and robotics – A favored choice due to their simplicity and reliability.

Advantages of Toggle Switches

Toggle switches remain a favored component for several important reasons:

• Clear Status Indication: The physical position of the switch clearly indicates whether it’s on or off.
• Durability: Good-quality toggle switches can withstand thousands of cycles.
• Mechanical Reliability: Fewer parts mean less can go wrong, making them reliable and long-lasting.
• Versatility: Available in waterproof, dustproof, and even explosion-proof versions for demanding environments.
• Tactile Feedback: Users can often feel or hear the click, which provides reassurance of proper operation.

How to Wire a Toggle Switch

Wiring a toggle switch depends on its type and intended use. Below are general guidelines that apply to most toggle switches:

1. Turn off the power supply to the circuit you’ll be working on.
2. Choose the right type of switch: SPST, DPST, etc., depending on the functionality you need.
3. Connect the wires: Attach the live wire to the input terminal, and the output device’s wire to the output terminal.
4. Secure the wiring: Use crimp connectors or solder for a reliable connection.
5. Mount the switch: Install it in a panel or device housing, securing it with screws or clips.
6. Test the switch: Turn the power back on and test the functionality.

Always refer to the switch’s datasheet and, when in doubt, consult an electrician—especially for high-power or critical systems.

Safety Considerations

While toggle switches are generally safe, precautions are important to ensure longevity and avoid hazards:

• Avoid overloading: Make sure the switch’s ampere rating matches the load it will carry.
• Prevent short circuits: Double-check wire placement and insulation.
• Use protective covers: In outdoor, marine, or dusty environments, a toggle boot or sealed switch will prevent damage.
• Regular maintenance: For switches in high-use settings, periodically inspect for wear or corrosion.

Toggle Switches vs. Other Switch Types

How do toggle switches compare to other common types of switches?

Type	Main Feature	Common Use
Toggle Switch	Lever action and tactile feedback	General-purpose switching, panels
Push Button	Press to activate	Doorbells, machines, mobile devices
Rocker Switch	Rocks like a seesaw	Power control on appliances
Slide Switch	Moves horizontally	Tiny electronics, circuit boards

While toggle switches offer a great balance between simplicity and function, the choice depends on the application and space constraints.

Tips for Choosing the Right Toggle Switch

Before purchasing or installing a toggle switch, ask yourself the following:

• What voltage and current will it handle?
• Do I need multiple poles or throws?
• Is momentary or maintained action preferable?
• Will it be used outdoors or in a rugged environment?
• Is appearance or size a concern?

Answering these questions ensures you select a switch that functions reliably and safely in your intended application.

Conclusion

Toggle switches may be small, but their impact is enormous across a wide range of electrical and electronic applications. With their robust design, simple interface, and consistent reliability, these switches are a cornerstone of control systems both large and small. Whether you’re building a robot, renovating your classic car, or managing industrial equipment, understanding toggle switches opens the door to smarter, safer, and more effective control.
