Box Dimensions Explained: How to Measure Shipping Boxes Correctly

Shipping boxes look simple until a package is measured incorrectly and costs more than expected. Whether you are sending one gift, running an online store, or preparing warehouse shipments, understanding box dimensions can help you avoid surprise fees, damaged goods, and inefficient packing.

Why Box Dimensions Matter

When carriers calculate shipping costs, they do not care only about how heavy a package is. They also care about how much space it takes up in a truck, van, aircraft, or sorting facility. A box filled with pillows may weigh very little, but if it is large, it occupies valuable space. That is why accurate measurements are essential.

Correct box dimensions help you:

• Estimate shipping costs accurately before buying labels.
• Choose the right box size for your product or item.
• Reduce packaging waste and avoid oversized cartons.
• Prevent damage caused by boxes that are too tight or too loose.
• Avoid carrier adjustments after your package is scanned.

For businesses, even small measurement mistakes can add up. If hundreds of packages are entered with dimensions that are too small, a carrier may issue billing corrections. If boxes are too large, the business pays more than necessary. In short, measuring correctly is not just a packaging detail; it is a cost-control habit.

The Standard Order: Length × Width × Height

Box dimensions are almost always written in this order: length × width × height. For example, a box listed as 16 × 12 × 8 inches has a length of 16 inches, a width of 12 inches, and a height of 8 inches.

The easiest way to identify each measurement is to place the box in front of you with the opening facing upward:

1. Length: The longest side of the box opening.
2. Width: The shorter side of the box opening.
3. Height: The vertical distance from the bottom to the top.

This method works for most standard rectangular shipping boxes. If two sides look similar, choose the longer of the two as the length. The order may seem like a small detail, but it matters when comparing box sizes, ordering packaging supplies, or entering dimensions into shipping software.

Interior vs. Exterior Dimensions

One of the most common sources of confusion is the difference between inside and outside dimensions. These are not the same, especially with thicker corrugated cardboard.

Interior dimensions describe the usable space inside the box. These are the measurements you need when deciding whether a product will fit. Packaging suppliers often list boxes by interior dimensions because customers want to know what can go inside.

Exterior dimensions describe the total size of the box from outer edge to outer edge. These are the measurements carriers use to calculate shipping rates. The outside size includes the thickness of the cardboard, which can add a small but important amount to the final measurement.

For example, a box with interior dimensions of 12 × 9 × 6 inches might measure slightly larger on the outside. If you enter only the interior size when buying a shipping label, the carrier’s equipment may detect the larger exterior size and adjust the price.

Rule of thumb: use interior dimensions for packing decisions and exterior dimensions for shipping labels.

How to Measure a Shipping Box Correctly

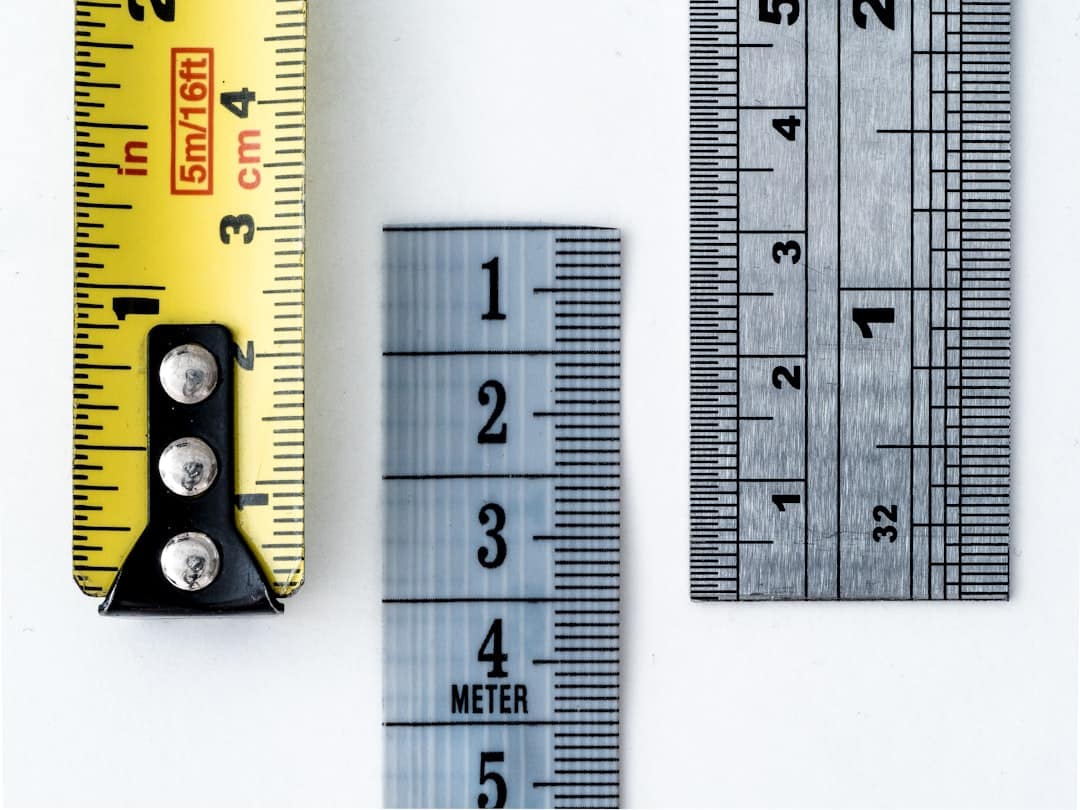

You do not need special equipment to measure most shipping boxes. A sturdy tape measure or ruler is usually enough. However, the process should be consistent, especially if you are measuring many boxes.

Follow these steps:

1. Assemble the box fully. Fold and tape it into its shipping shape. A flattened box will not give accurate exterior dimensions.
2. Measure the length. Find the longest side across the top opening or top surface.
3. Measure the width. Measure the shorter side across the top.
4. Measure the height. Measure from the bottom of the box to the top, keeping the tape straight.
5. Round up. If the box measures 12.2 inches, enter 13 inches. Carriers generally expect rounded-up measurements.

When measuring, avoid pressing the tape into soft cardboard or measuring at an angle. Measure from the outermost points if the box is bulging, because that is what scanning equipment may register. If your package is irregular because of overpacking, it may be better to repack it in a stronger or more appropriate box.

Understanding Dimensional Weight

Dimensional weight, often called DIM weight, is a pricing method based on package volume rather than actual weight. Carriers use it to charge fairly for large boxes that are light but take up a lot of space.

The basic formula is:

Length × Width × Height ÷ DIM divisor = Dimensional weight

The DIM divisor varies by carrier, service, and region. A common example is 139 or 166 for inch-based measurements, but you should always check the specific carrier’s rules. If the dimensional weight is higher than the actual weight, the carrier usually charges based on the dimensional weight.

For example, suppose a box measures 20 × 16 × 12 inches. Its volume is 3,840 cubic inches. If the divisor is 139, the dimensional weight is about 27.6 pounds, which would usually round up to 28 pounds. Even if the package actually weighs only 10 pounds, you may be charged at the 28-pound rate.

This is why using the smallest safe box is so important. Leaving several inches of unnecessary empty space can increase the shipping cost dramatically.

Measuring Boxes for Products and Protective Materials

If you are choosing a box for an item, do not select one that matches the product dimensions exactly. Most items need protective materials such as bubble wrap, kraft paper, foam inserts, or air pillows. The amount of extra space depends on the product’s fragility, weight, and shape.

As a general guide:

• Durable items may need about 1 inch of cushioning on each side.
• Fragile items often need 2 inches or more on each side.
• Heavy items need a strong box with minimal empty space to reduce shifting.
• Multiple items should be separated so they do not collide during transit.

A box that is too small can crush the item or leave no room for padding. A box that is too large can allow the contents to move around, increasing the risk of breakage. The best box is one that balances protection, fit, and shipping efficiency.

Common Mistakes to Avoid

Incorrect box measurements usually come from simple habits. The good news is that they are easy to fix once you know what to watch for.

• Measuring only the inside: Good for product fit, but not enough for carrier pricing.
• Forgetting to round up: A measurement of 10.1 inches should be treated as 11 inches.
• Mixing up the order: Always record dimensions as length × width × height.
• Ignoring bulges: Overfilled boxes may measure larger than expected.
• Using damaged boxes: Crushed corners and warped sides can affect both protection and measurement.

Another mistake is assuming that all carriers measure the same way. While the general principles are similar, specific rounding rules, oversize limits, and DIM weight calculations can vary. If you ship frequently, keep a quick reference chart for the carriers you use most.

Practical Tips for Better Shipping Accuracy

For occasional shippers, careful measuring before buying a label may be enough. For businesses, it is worth creating a more standardized system. Keep a list of your most commonly used box sizes, including their exterior measurements and empty weight. This saves time and reduces data entry errors.

You can also test different packaging options for the same product. Sometimes switching from a tall box to a flatter one, or using a mailer instead of a carton, can reduce dimensional weight. However, never sacrifice protection just to save a little on postage. A damaged shipment can cost more than the original shipping fee.

It is also smart to measure after the box is packed, not only before. Once cushioning, tape, and contents are added, the package may bulge slightly. The final outside dimensions are the ones that matter most for shipping.

Final Thoughts

Measuring shipping boxes correctly is a small task with a big impact. The key is to remember the standard order: length × width × height. Use interior dimensions when checking whether an item fits, and exterior dimensions when calculating shipping rates.

By rounding up, watching dimensional weight, and choosing boxes that fit your items properly, you can ship more confidently and efficiently. Accurate measurements help protect your products, control your costs, and make the entire shipping process smoother from packing table to doorstep.
